Kelys & Chirp
REUGE x MB&F

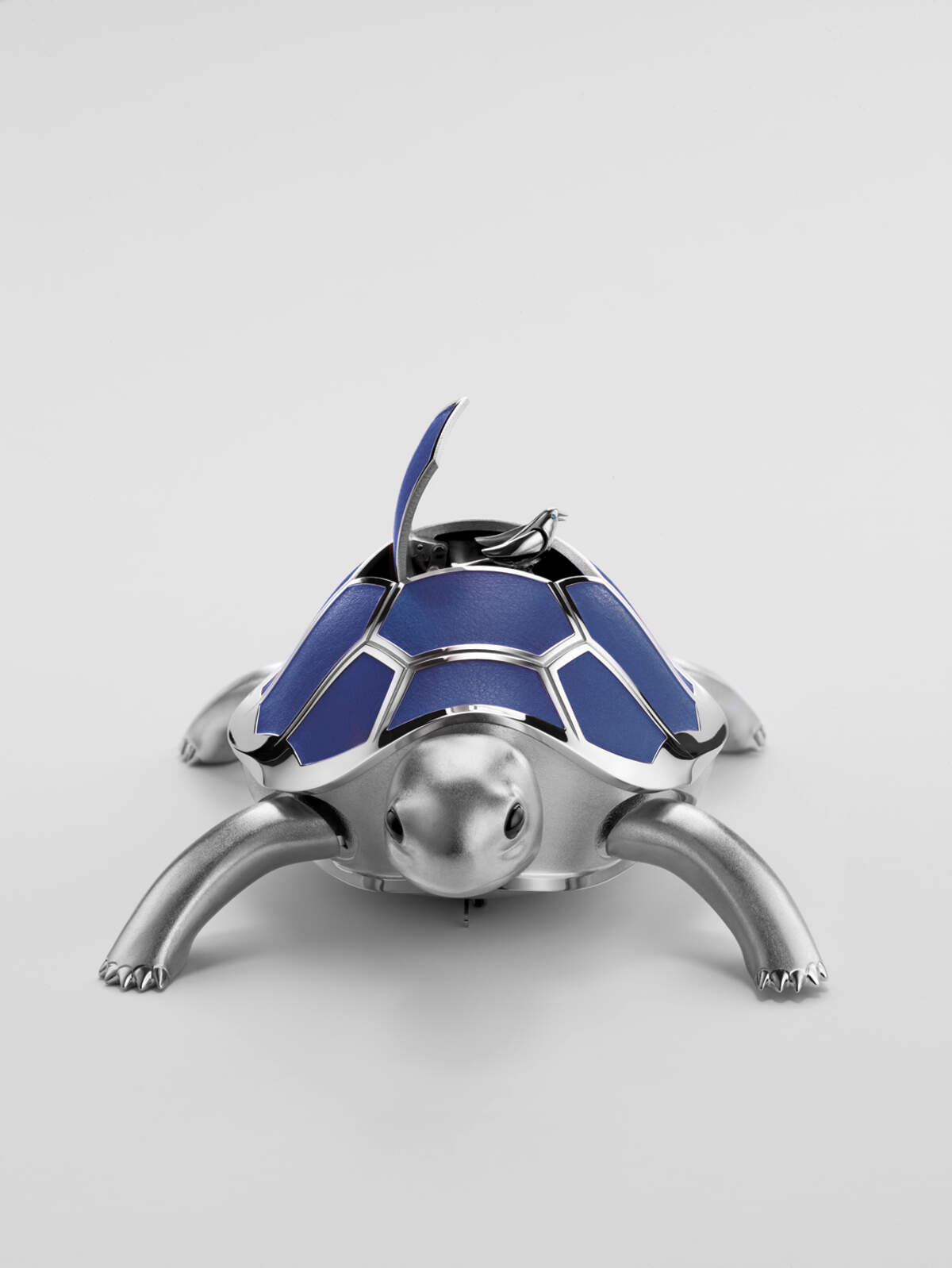

Kelys & Chirp is a joyous celebration of friends. It is itself a union of Chirp and Kelys, two unlikely companions living happily together, and was developed as a co-creation by two Friends: Reuge & Nicolas Court.
Overview

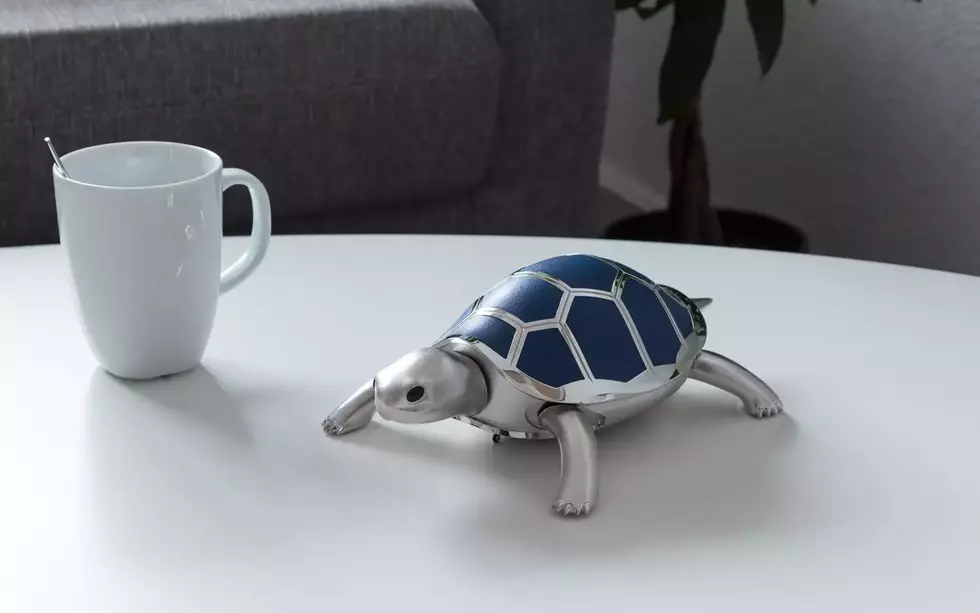

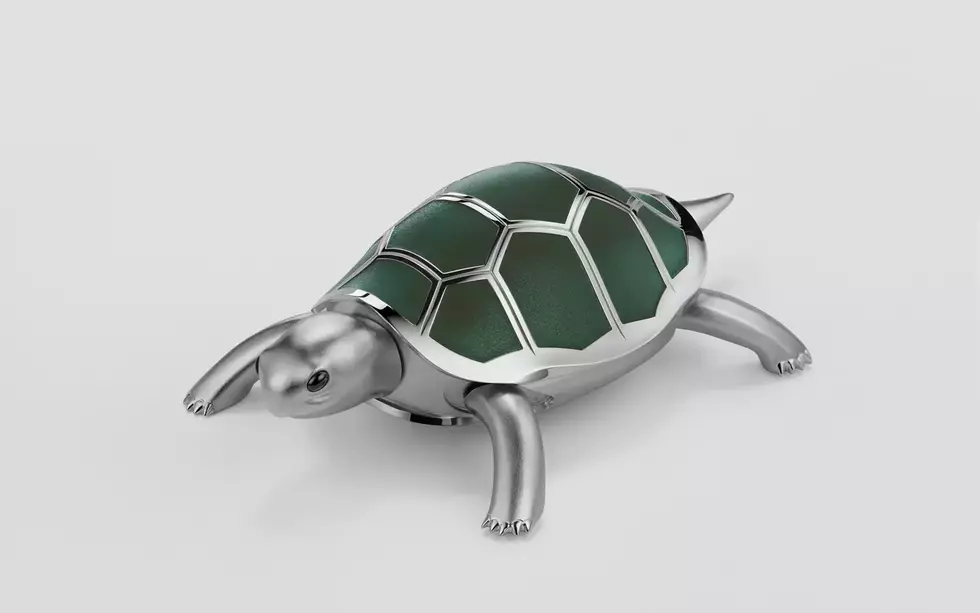

Kelys (from the Greek chelone or chelys for tortoise) moves in a realistic tortoise-like gait with his head moving slowly side-to-side, his movements all in synchronicity with Chirp as springing from her nest and pirouetting, her beak opening and closing, wings flapping, and tail wagging, all in time to the melodic bird song.
Turtles have long represented wisdom in many cultures because of their long life spans (up to 190 years). While Kelys is certainly wise enough (an integrated mechanical sensor ensures that he doesn’t walk off table or desk tops), it’s his playful streak that complements Chirp’s musical exuberance.
About Kelys & Chirp

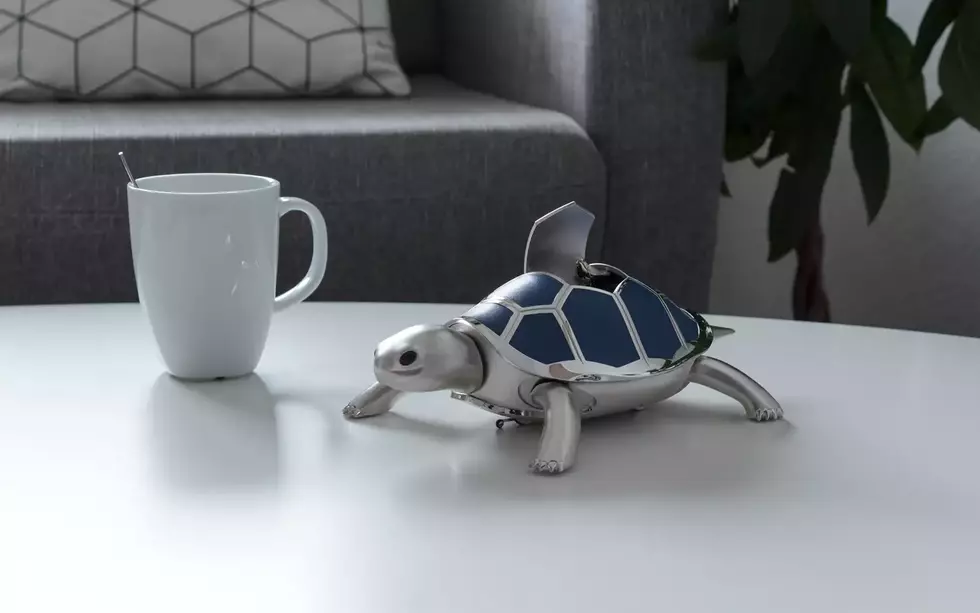

Turtles move with a very particular push/pull gait; thanks to unconventional gearing and cams, Kelys moves in a very similar fashion. You can also enjoy a concert by Chirp without Kelys moving by pushing his tail up; with his tail down he walks while Chirp sings.

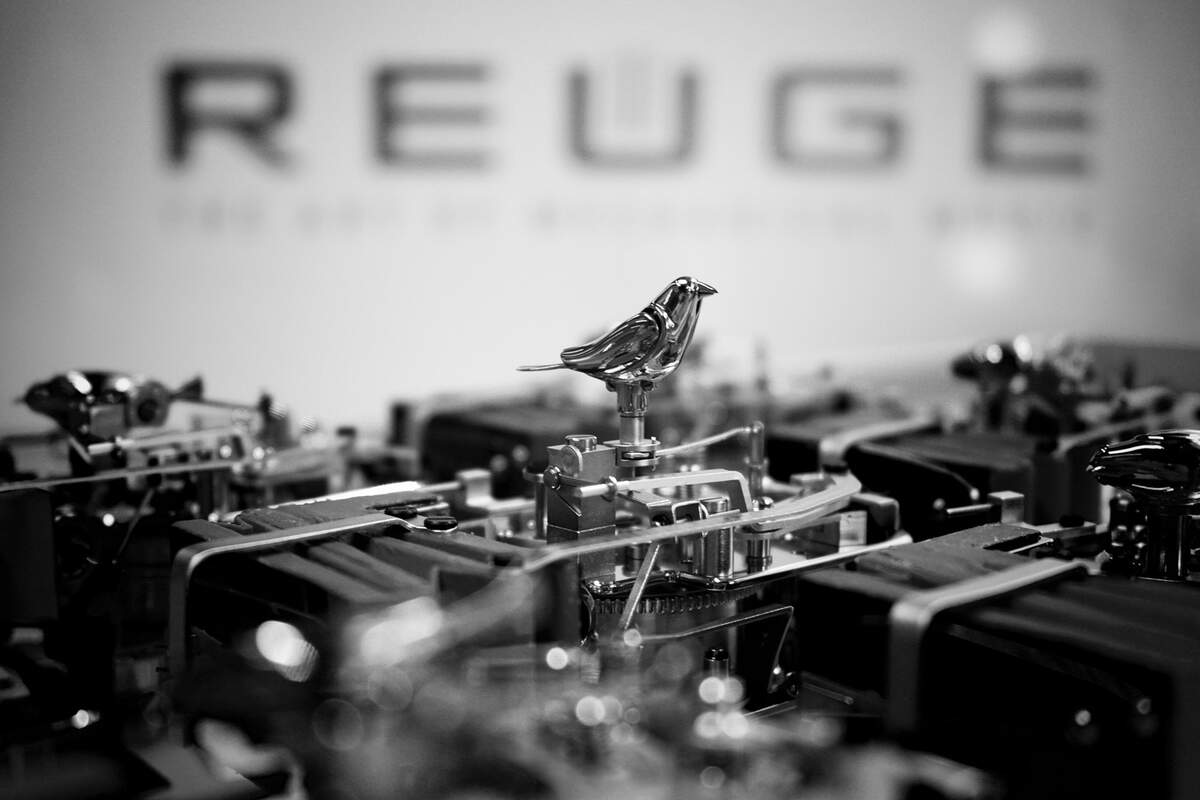

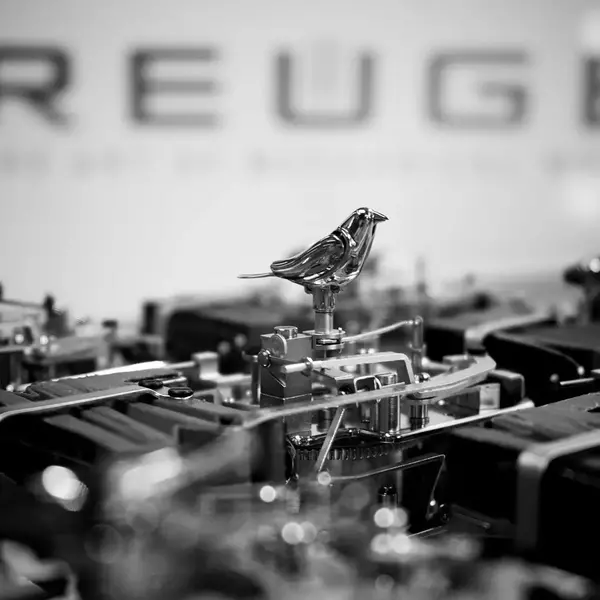

Chirp’s birdsong sounds amazing, both due to the accuracy of the song and for the fact that such a relatively loud sound emits from such a small object. This is thanks to a 230-year-old invention, generally credited to Pierre Jaquet-Droz (1721–1790), who came up with the idea of the modern Singing Bird complication. By 1785, Droz had both miniaturized the mechanically-controlled bird and developed a compact movement: his secret was in recreating a realistic birdsong using just one bellow of variable pitch rather than multiple single-pitch bellows. The quality of the bird’s song and how well it carries always astonishes the first time it is heard.
A complex automaton mechanism

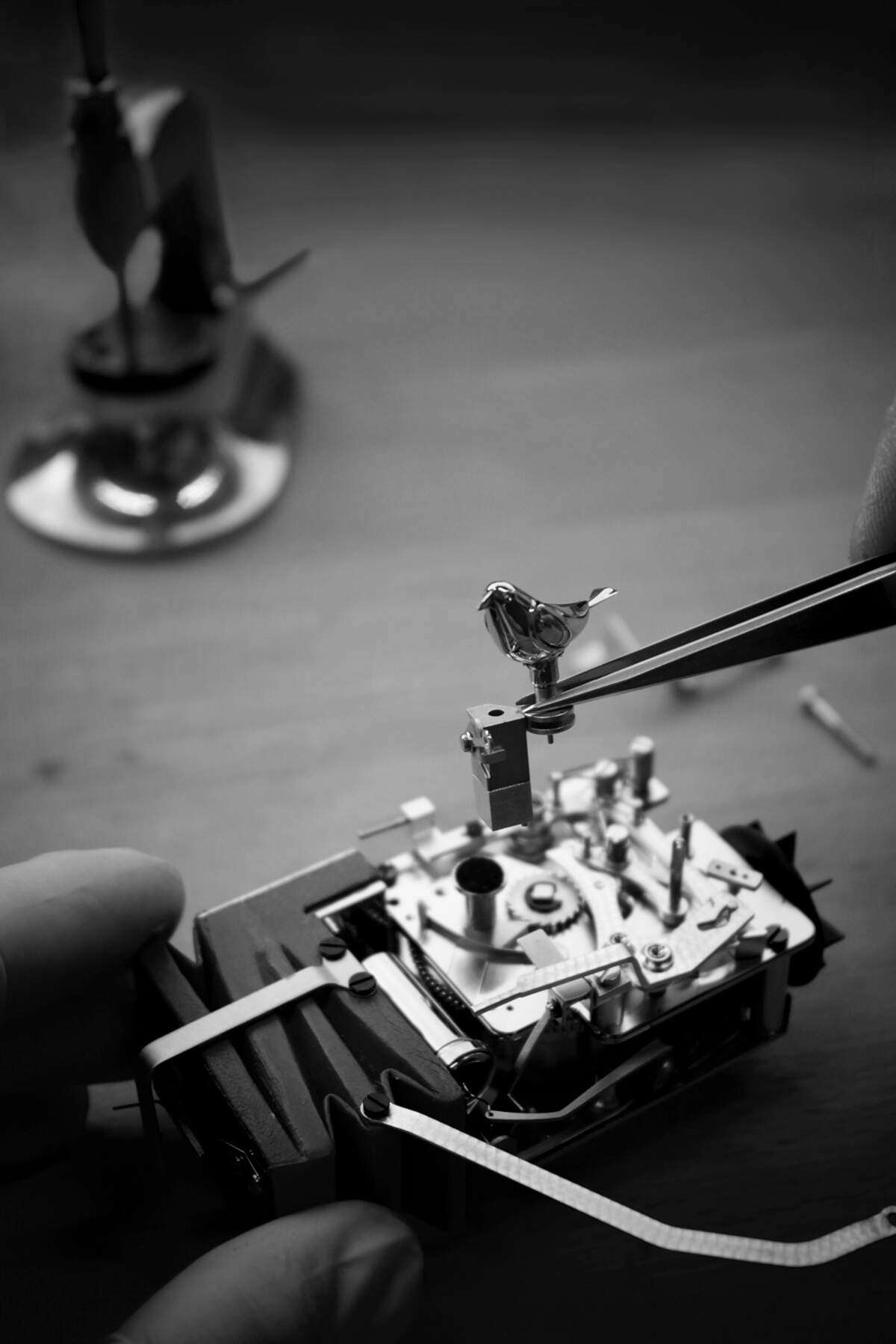

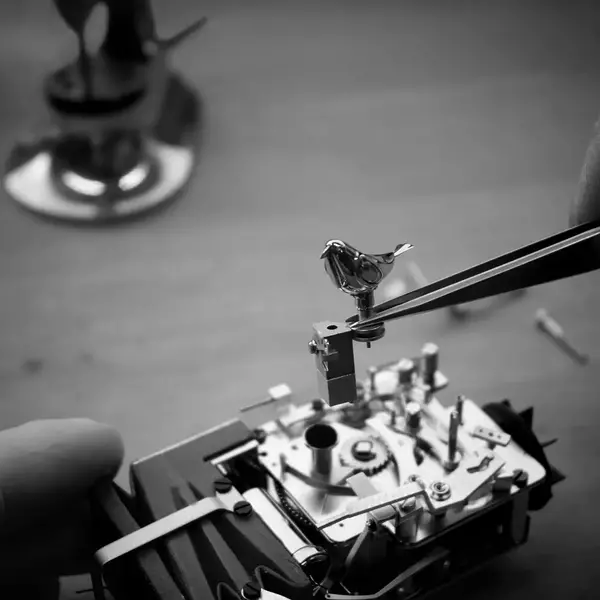

While Kelys & Chirp may look relatively simple compared to a complicated watch, its 480 components (enough for a minute repeater) lie testament to the complexity within. This is where Nicolas Court and his team worked their magic: working around the Singing Bird, which is a complete movement itself, they faced significant challenges when developing the turtle automaton mechanism. These included moving the relatively heavy (1.4 kg) turtle with the little power available from the small mainspring of the Singing Bird movement, while ensuring that the turtle moved realistically. The first was solved by finding the optimal low ratio gearing, the latter by the use of elliptical gearing in the power train, along with cams dictating the movement of the legs.
Court and his team added a friction clutch security system, which detects surface edges and immediately stops the turtle moving forward over the abyss… They also reintroduced a Reuge security system for the bird movement: if Chirp or her cover are accidently pushed down while she is singing, she stops and instantly retreats to her nest.

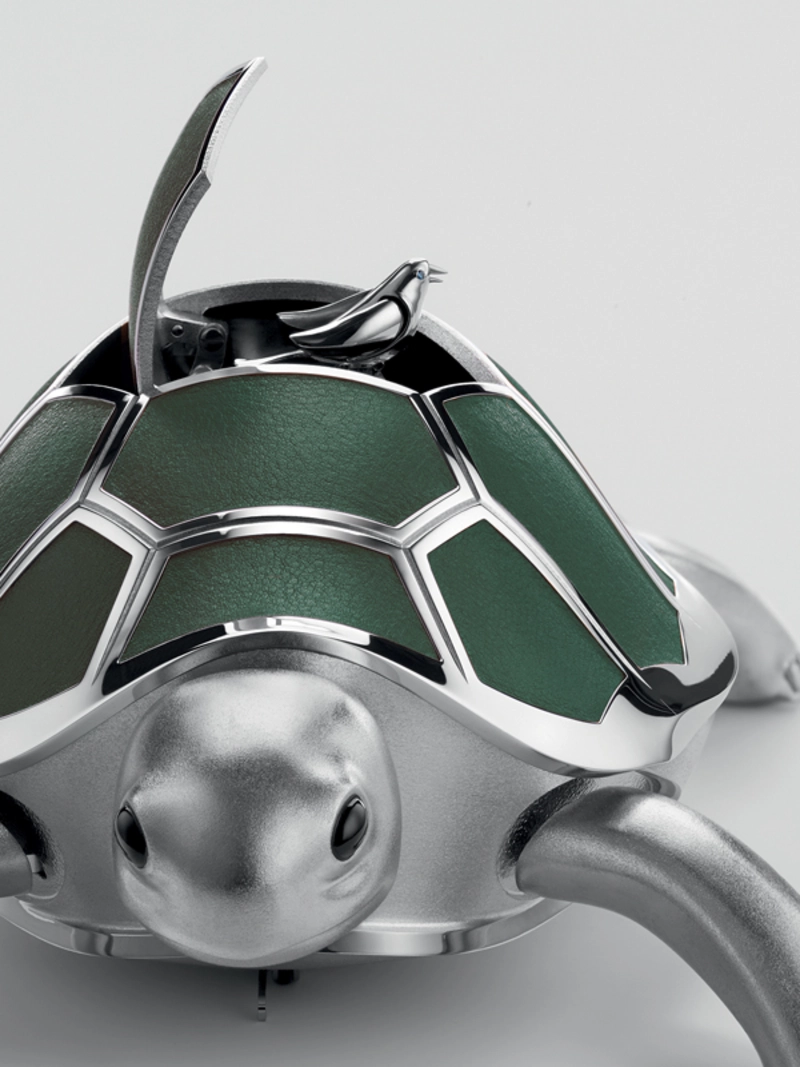

The scales (turtles are reptiles) on Kelys’ shell are individually hand made from high quality leather in 4 different colours, creating a warmer and more natural feel than bare metal.
Reuge x MB&F
4 Limited editions

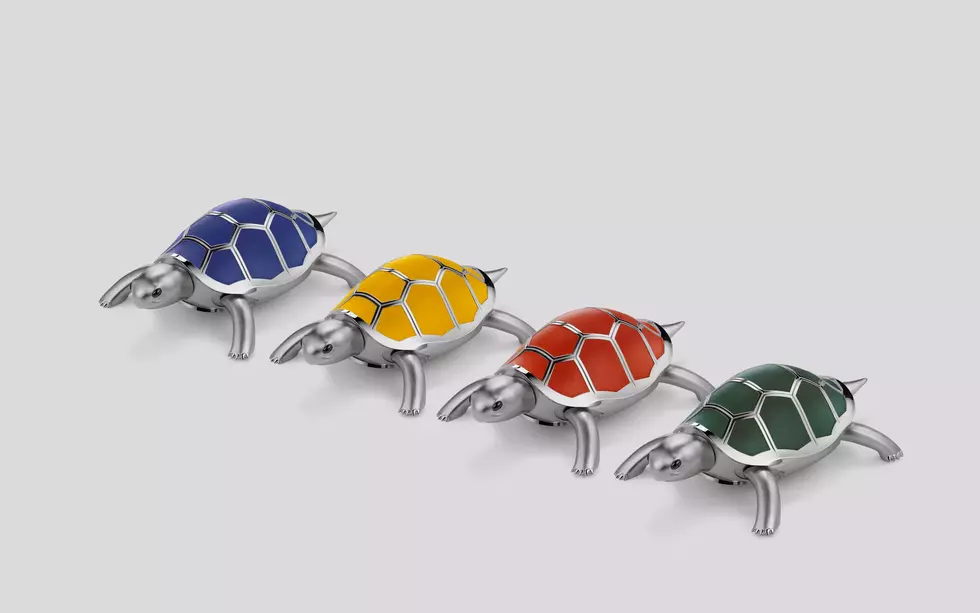

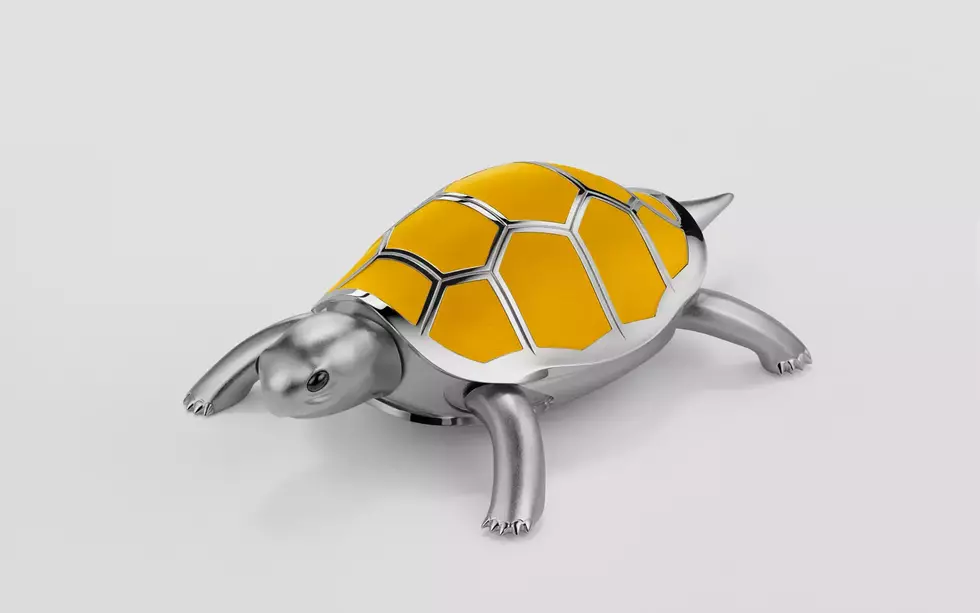

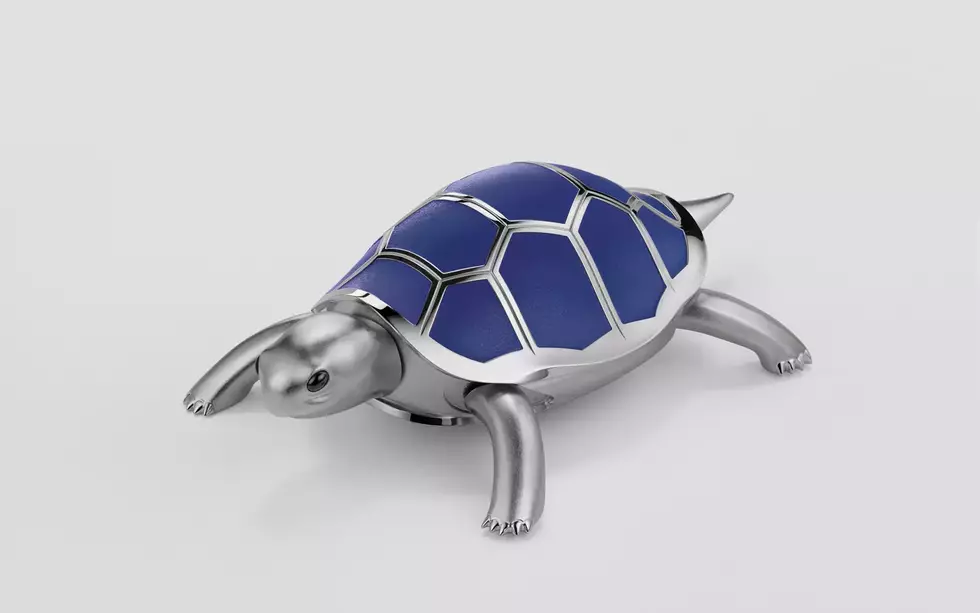

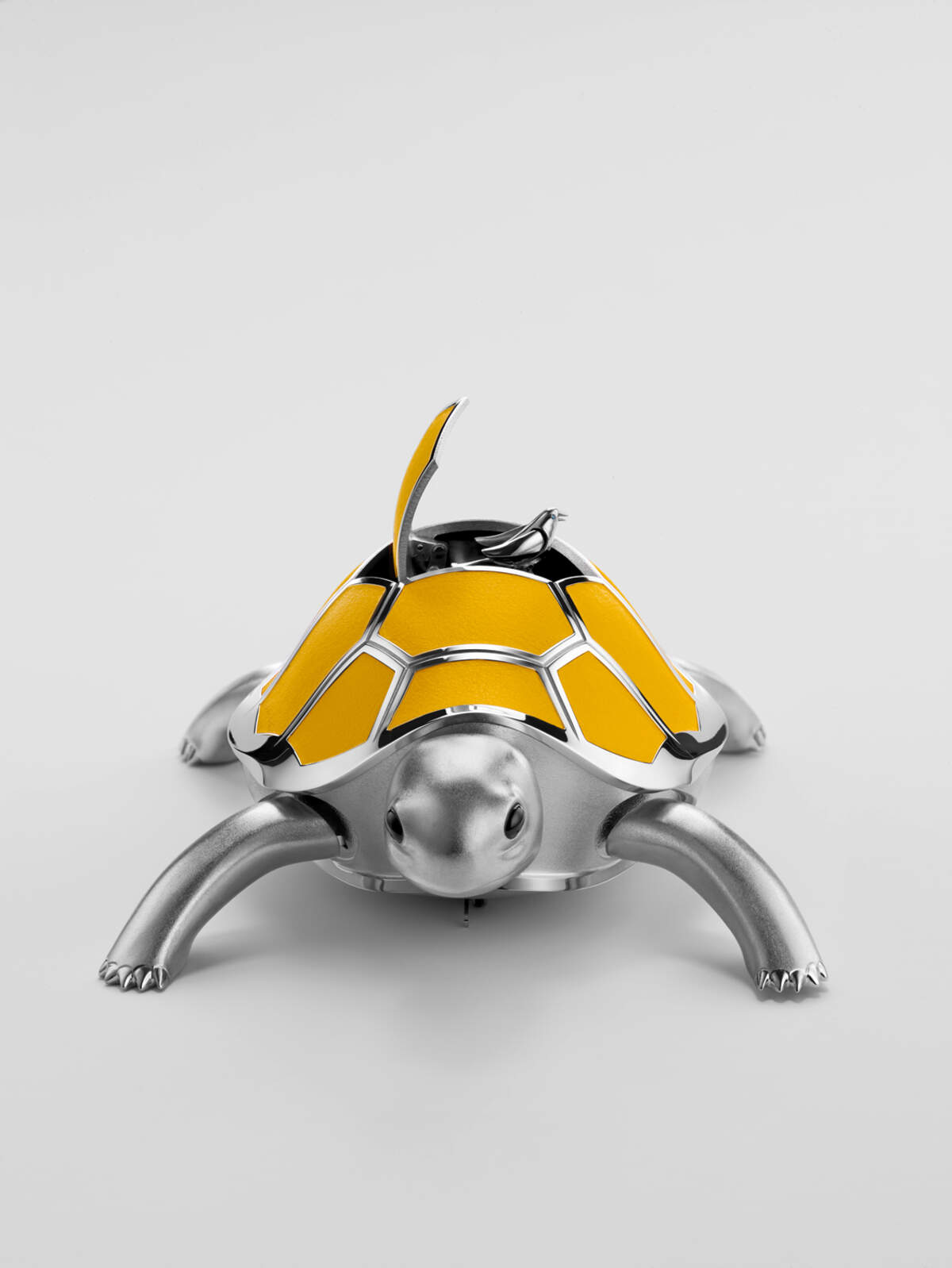

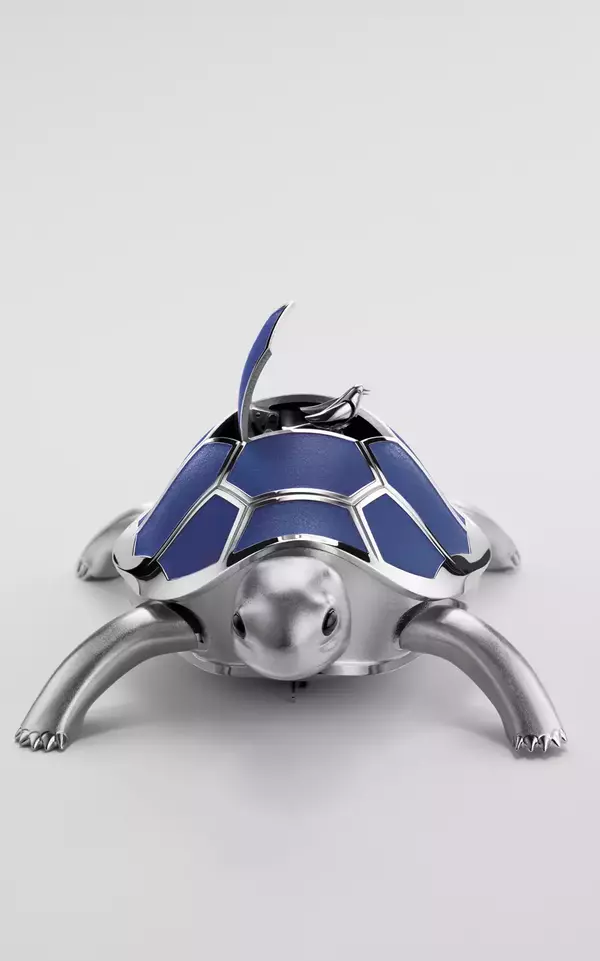

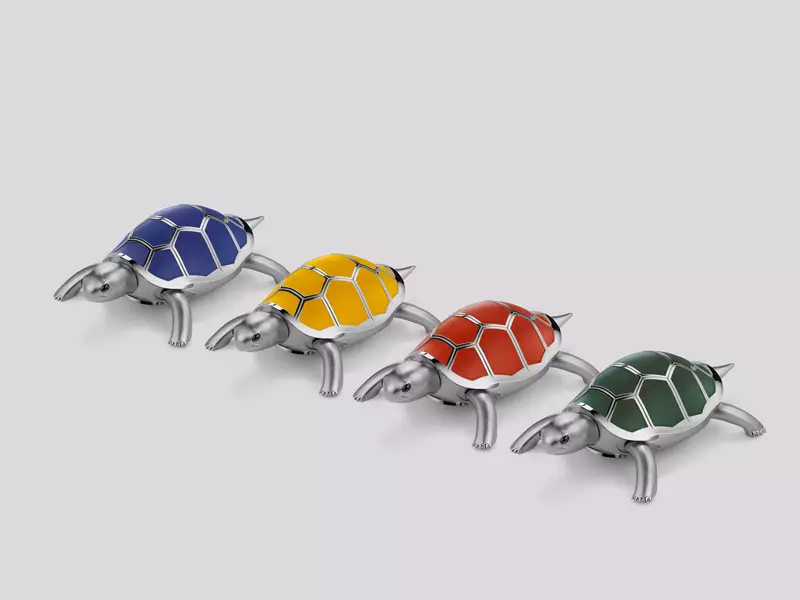

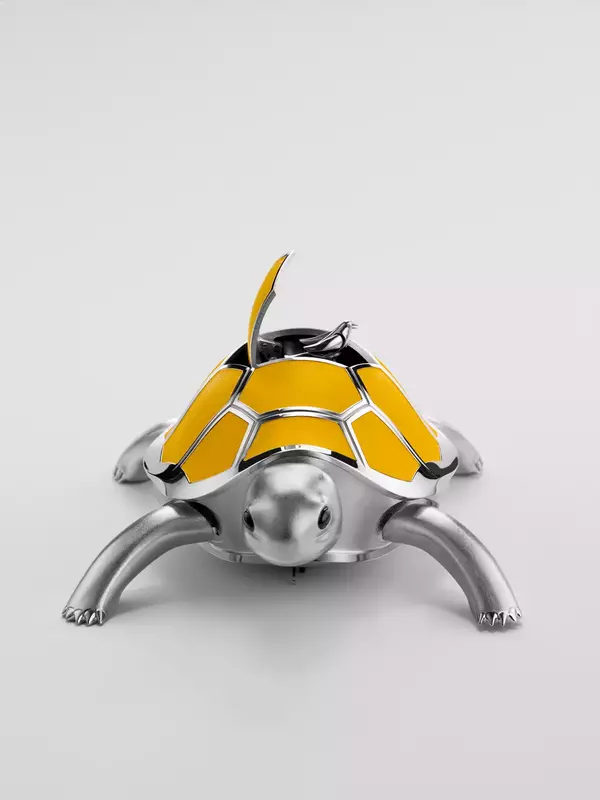

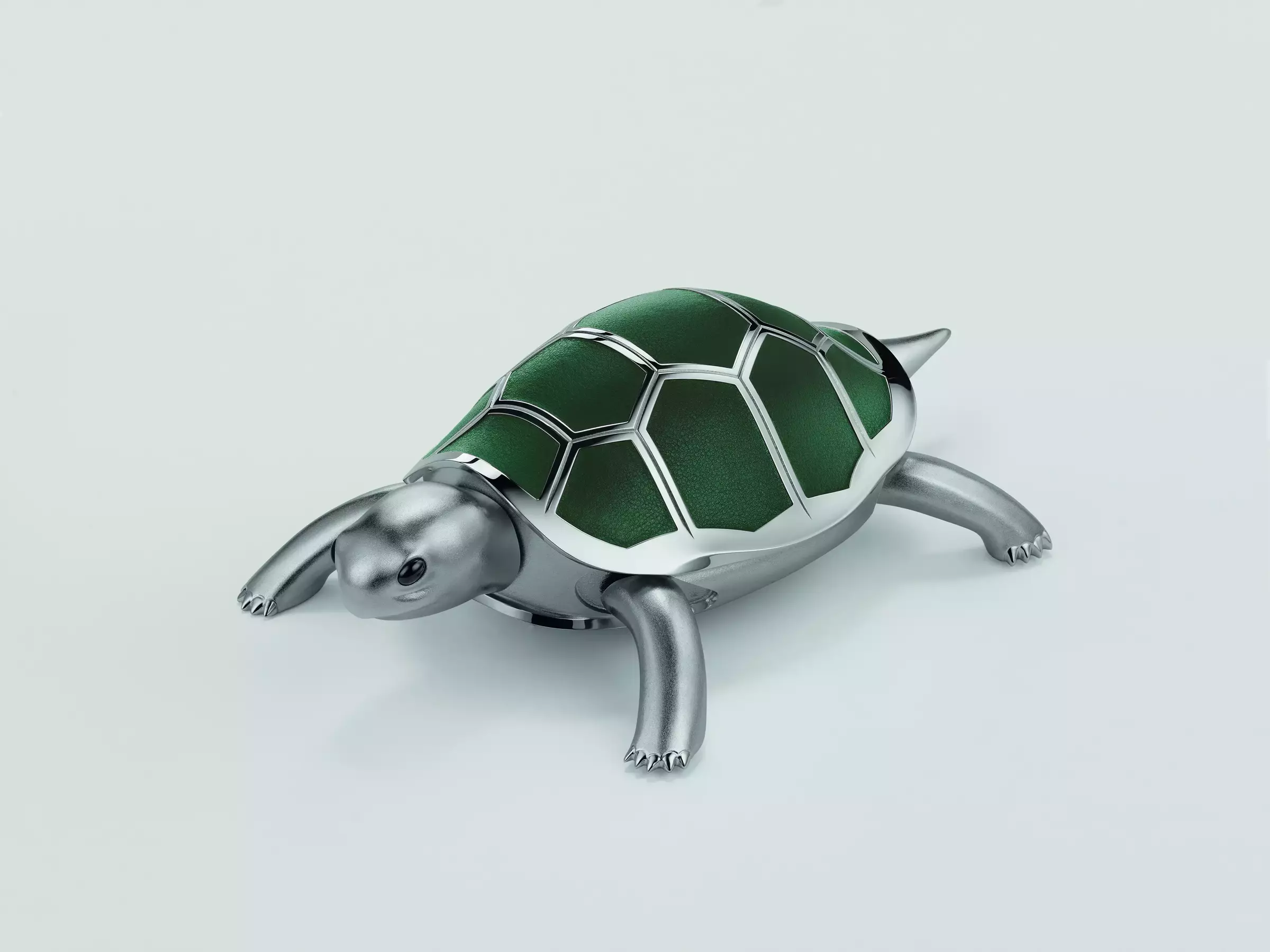

Kelys & Chirp is available in 4 limited editions of 18 pieces each in blue, green, yellow or ochre.
- Material: rhodium plated brass, stainless steel and 18K white gold
- Number of components: 480
- 100% hand assembled

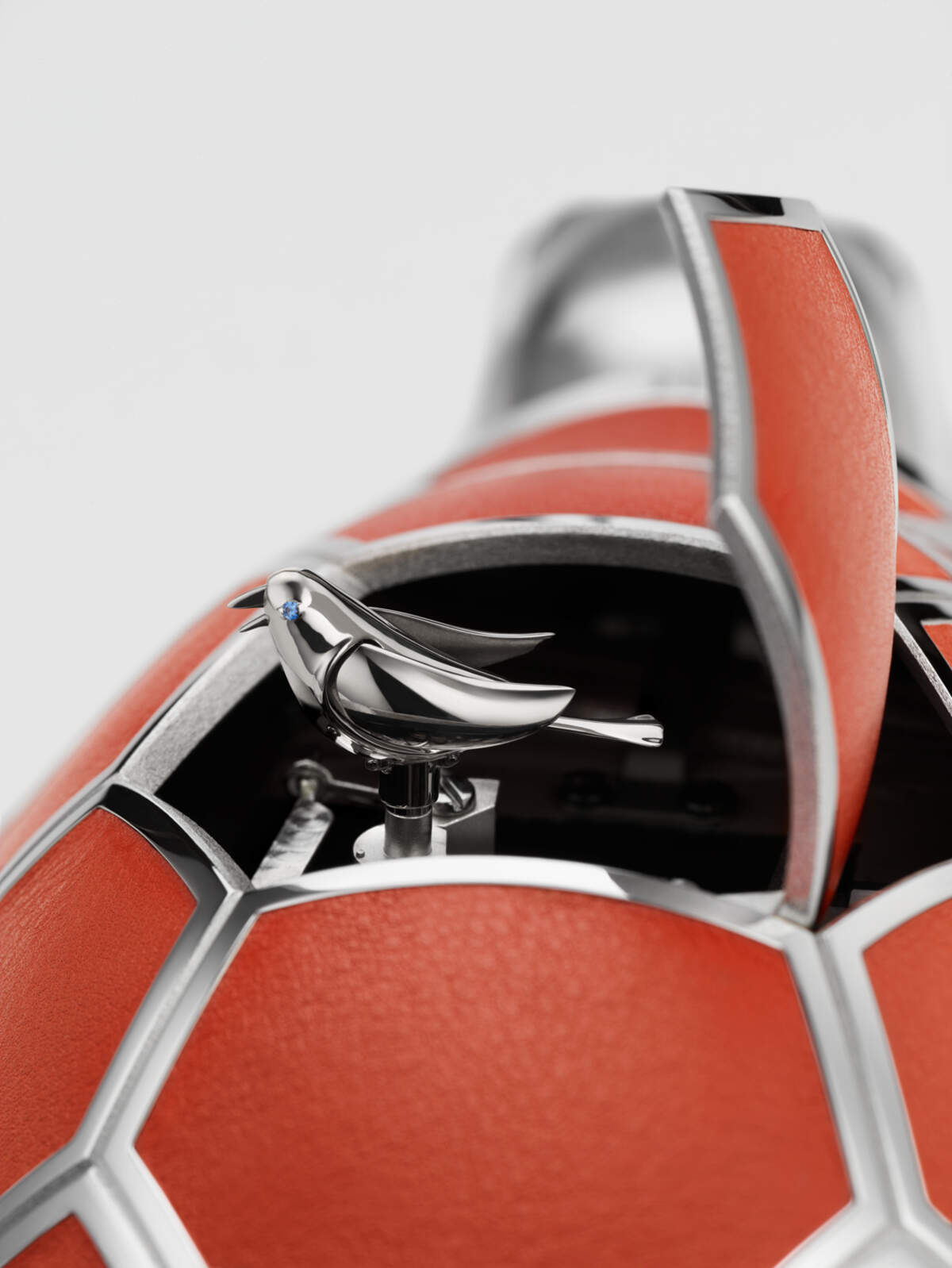

- Material: 18k white polished gold, eyes in sapphire
- Number of components (bird alone): 30
- Number of components (bellows): 90
- Mainspring: twin-cam spring barrel
- Power reserve: 3 cycles of turtle walking and bird singing
- Bellows: double bellows system (bi-directional air pushing)
- Security mechanism: if the bird or cover are pushed down while bird is singing, the bird automatically retreats
- Material: grained and polish finishing, rhodium-plated brass, eyes in black onyx gems
- Shell: 12 leather scales with individual polished edges
- Mechanism for turtle automaton is driven by the Singing Bird movement
- Number of components: 100
- Gear train: elliptical gearing enables the turtle to advance with a realistically non-regular gait
- Security friction clutch
- Circular stainless steel winding key located on tortoise’s belly
- Dimensions: 24 cm (length) x 16 cm (width) x 8 cm (height without bird open)
- Weight: 1.4kg (approx.)
- Speed: average tortoise speed: 0.03 m/s (0.06 mph)
Discover the models available
Inspiration
When the idea first came up of a turtle automaton with a singing bird on its back, Reuge – which had expanded from music boxes to also offering singing birds and who had developed MB&F’s MusicMachines – was the natural partnership choice. In turn, Reuge partnered with automaton specialist Nicolas Court to develop the mechanism that moves the turtle so realistically.
The invention of the modern Singing Bird complication is generally credited to Pierre Jaquet-Droz (1721–1790). By 1785, Droz had both miniaturized the mechanically-controlled bird and developed a compact movement: his secret was in recreating a realistic birdsong using just one bellow of variable pitch rather than multiple single-pitch bellows.
