Legacy Machine Split Escapement

Overview

There is one constant throughout the Legacy Machine collection: functions and complications vary, but the suspended balance wheel remains literally and metaphorically above everything else. With the LM Split Escapement, this feature is raised to another level.

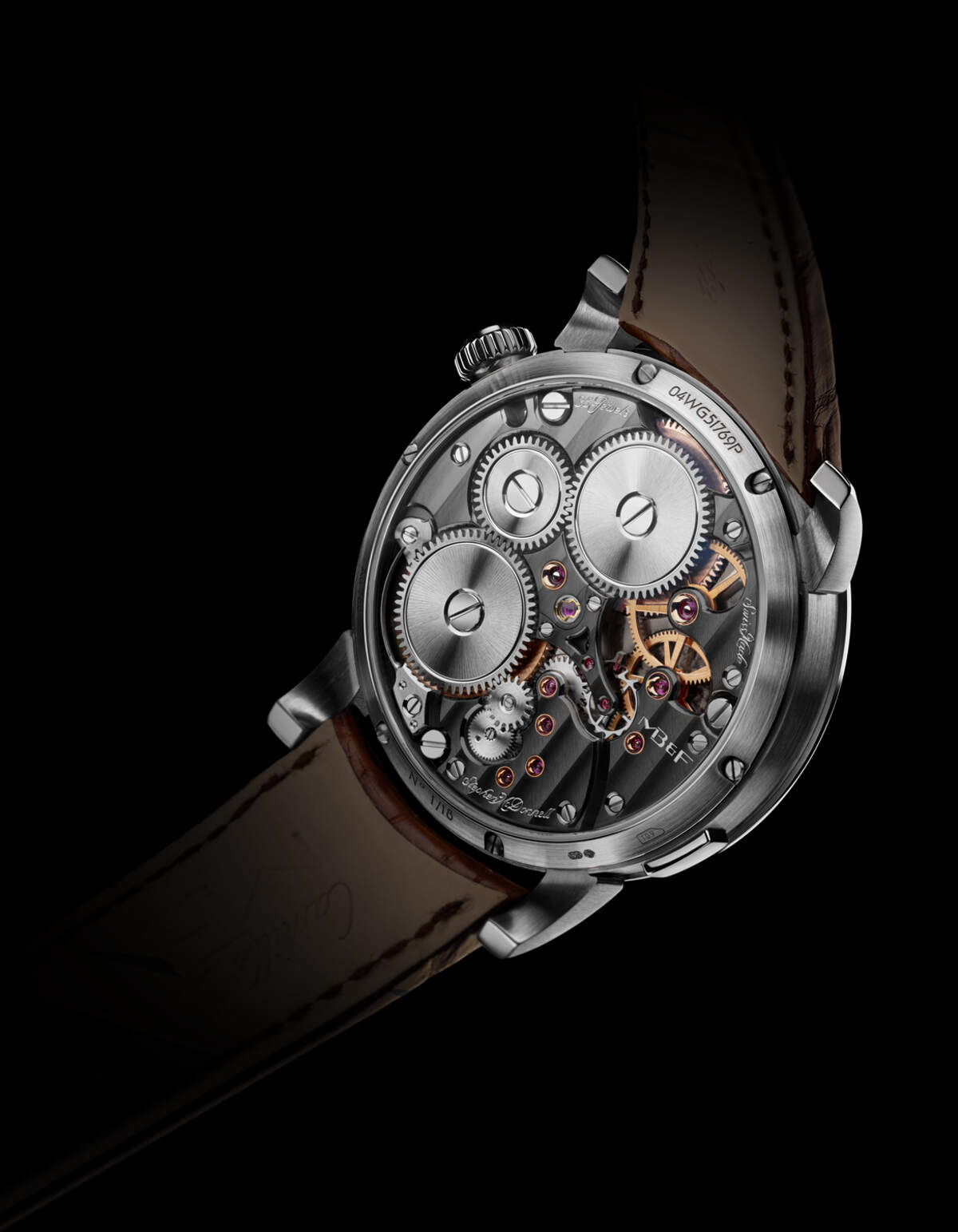

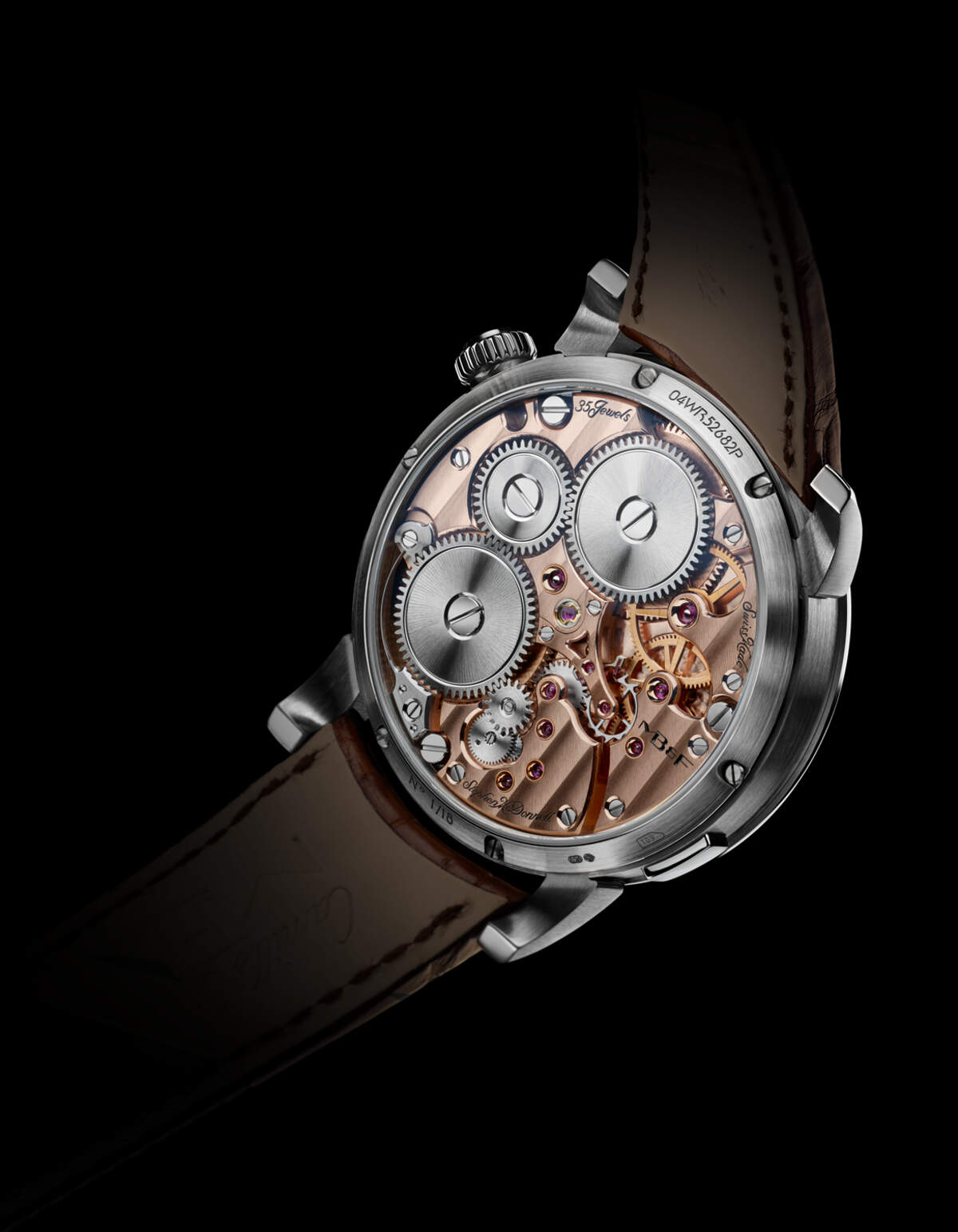

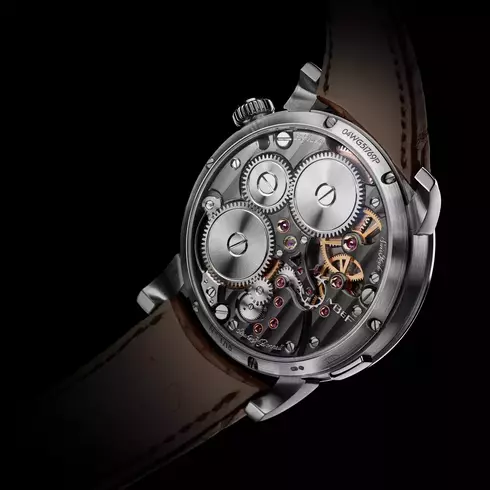

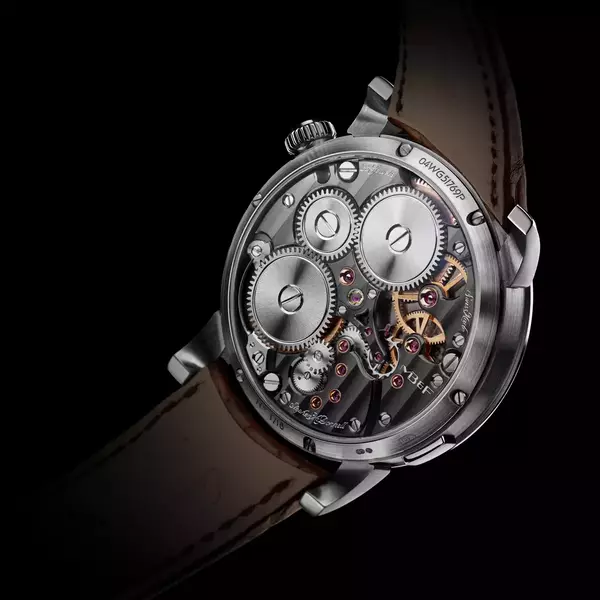

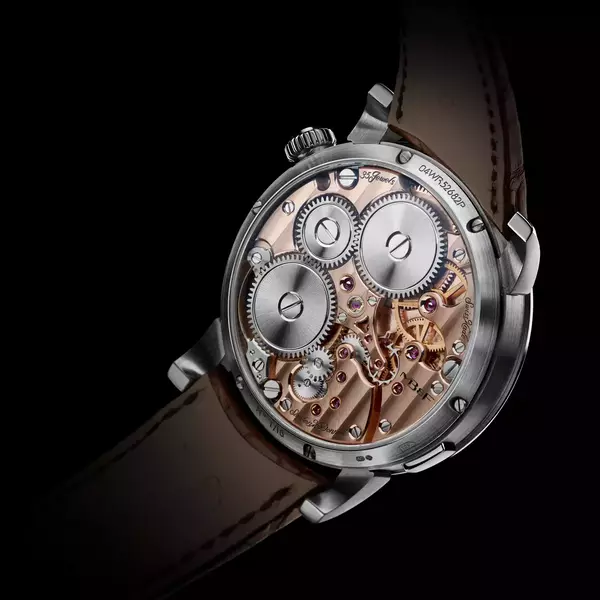

Just below the domed crystal, the balance of LM SE beats at a sedate, traditional 2.5Hz… What is rather less traditional is its construction: the balance seems to oscillate on its own, without any visible intake of energy. The essential remaining parts of the escapement – anchor and escape wheel – are concealed on the opposite side of the movement, almost 12 mm below.

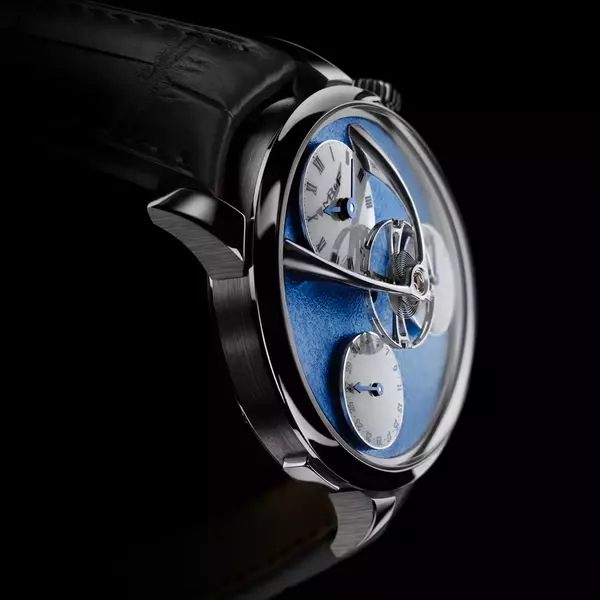

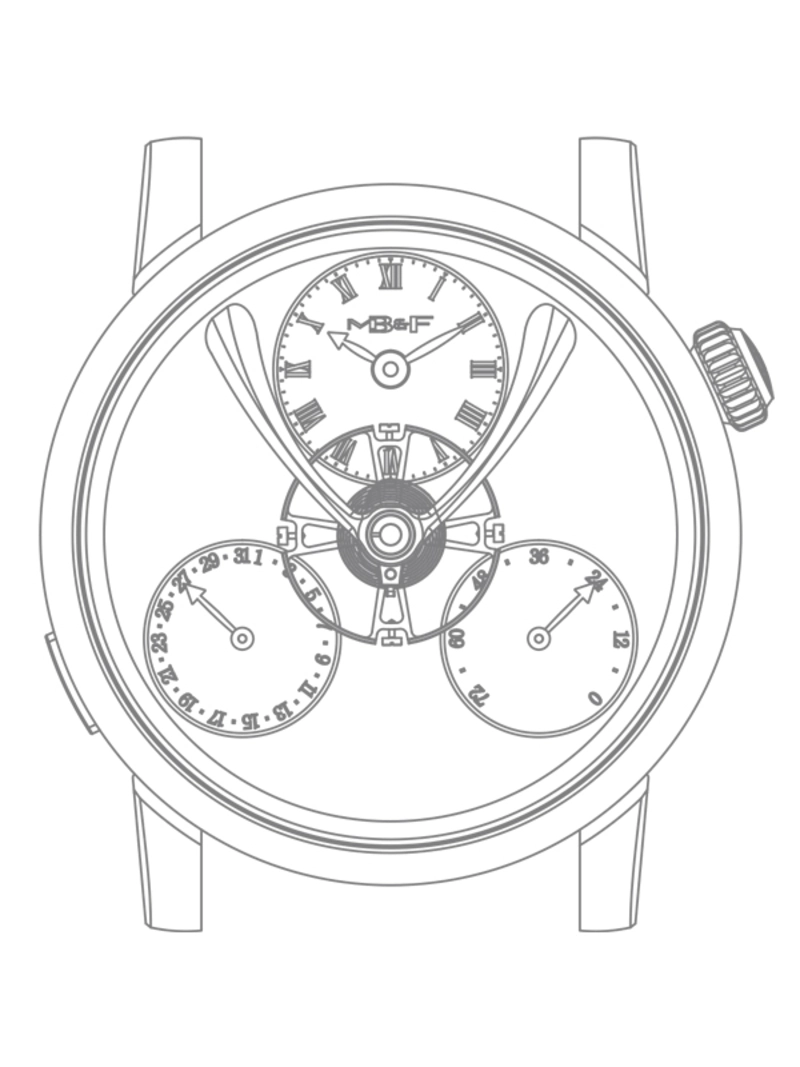

Under the balance, the triple-dial design gives the time at 12 o’clock, the power reserve at 4 o’clock and the date at 8 o’clock – quickly and easily adjustable thanks to a lateral push-button.

Legacy Machine Split Escapement

What's so special about this machine?

An easily adjusted date , a split escapement with a balance that oscillates on its own without any visible intake of energy and white lacquer subdials that contrast with striking dial plates… all of this makes an incredibly technical timepiece hidden under the simplicity of a beautiful and minimalistic look.

DIAL PLATE FINISHING

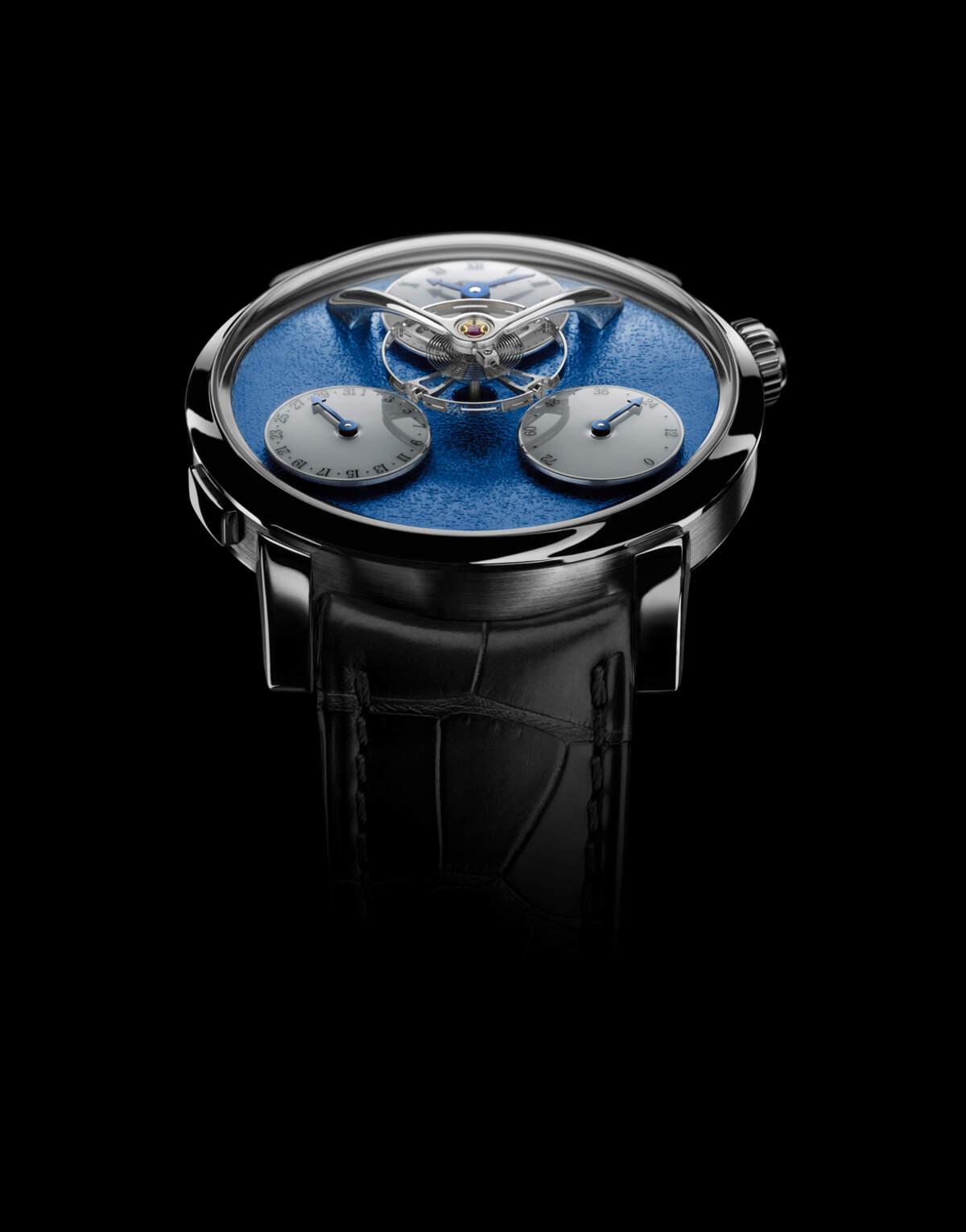

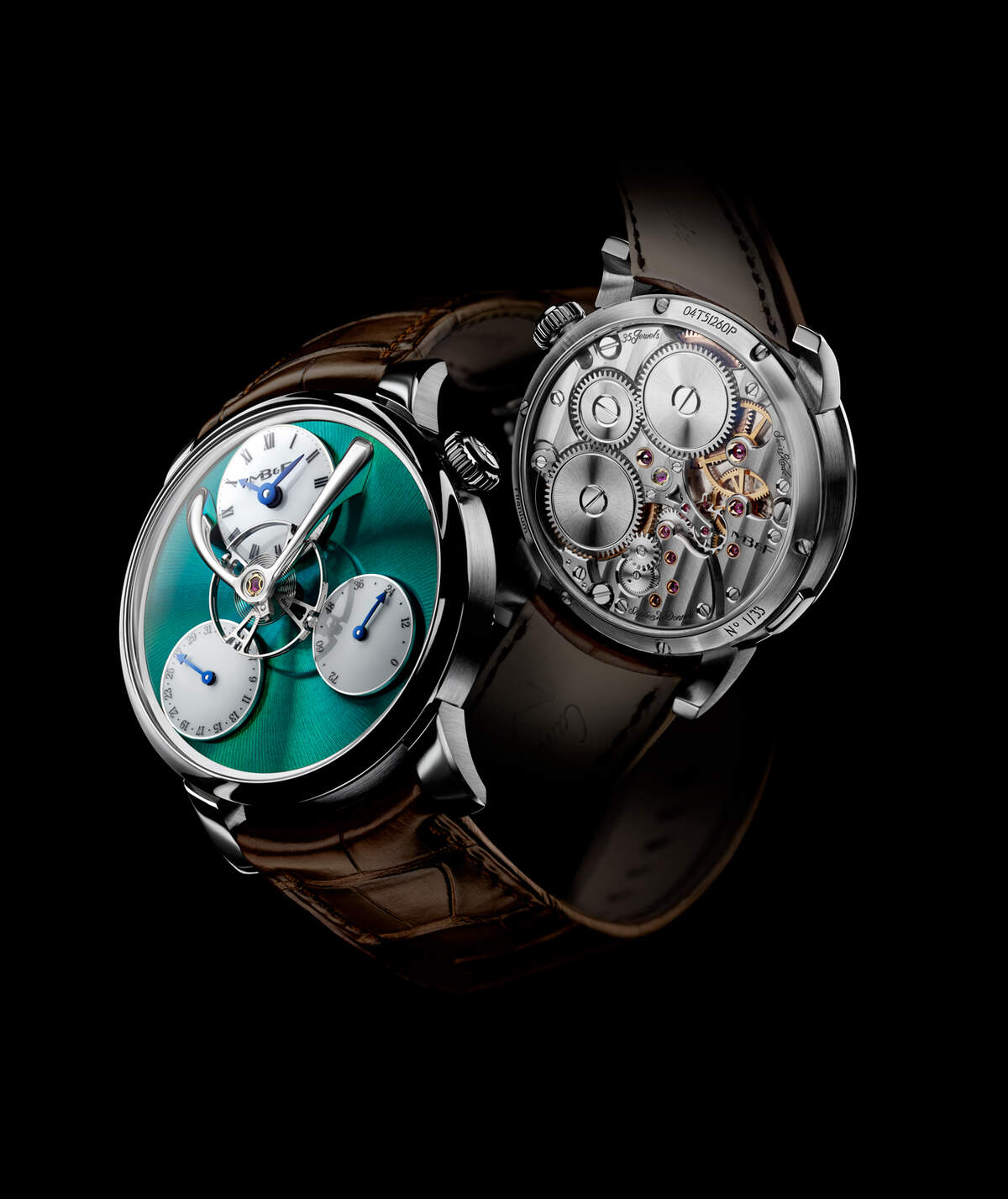

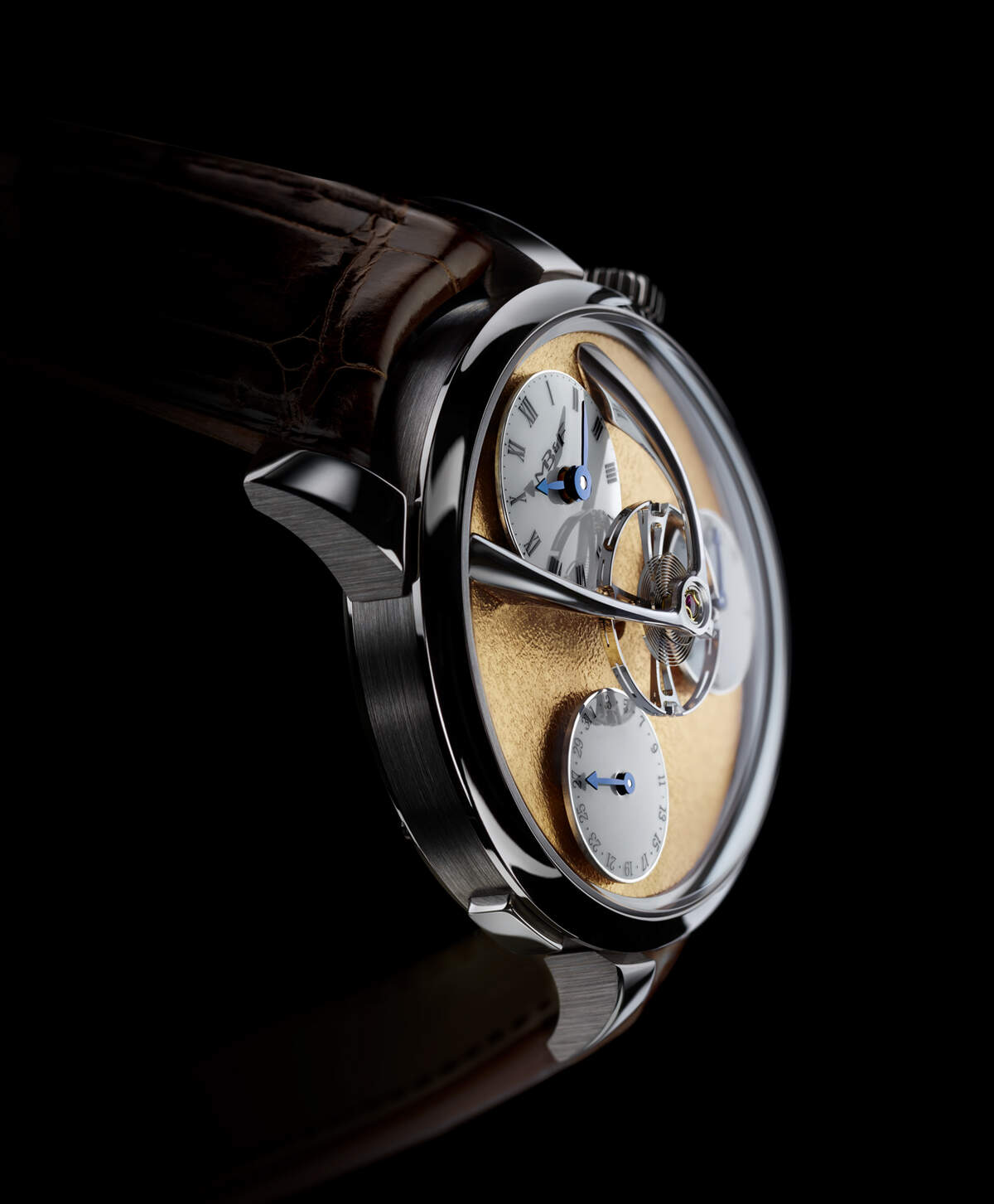

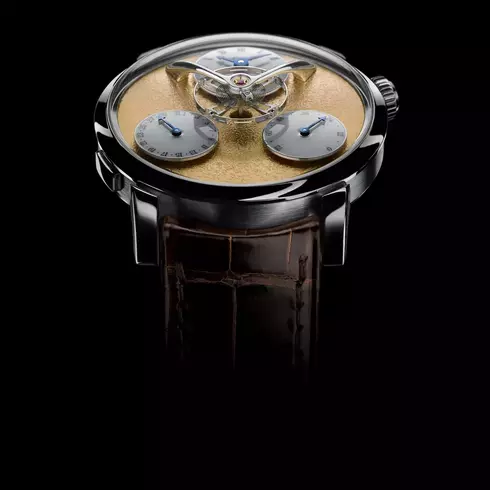

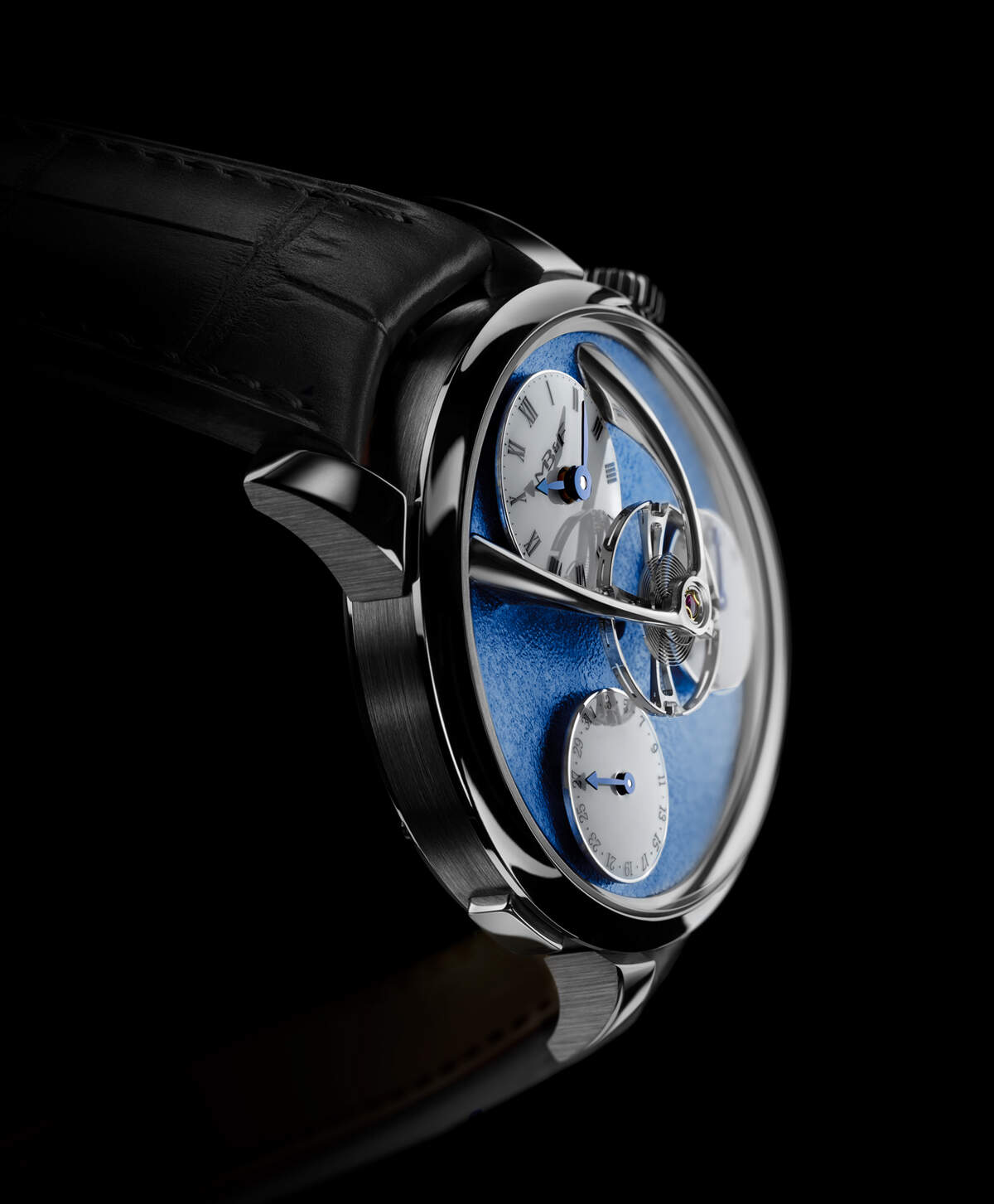

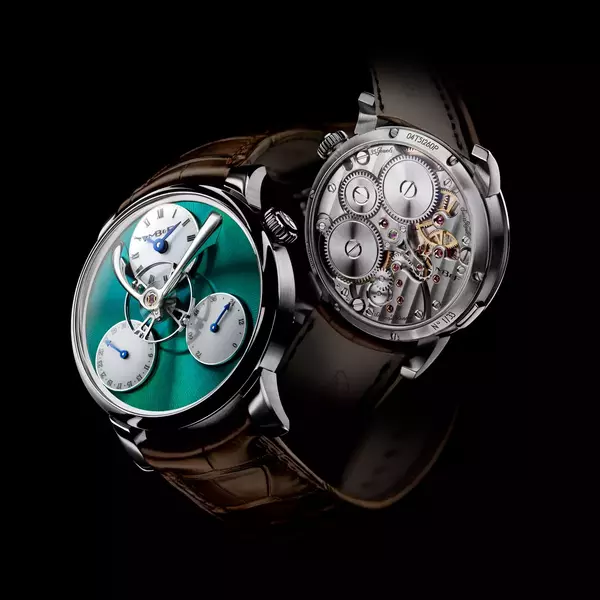

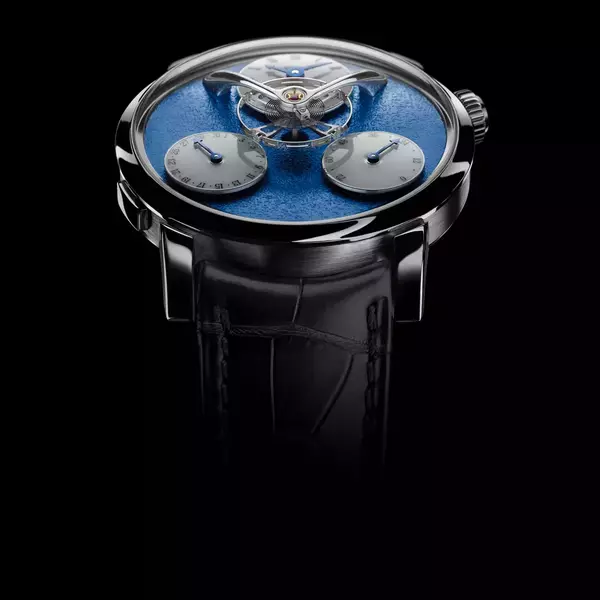

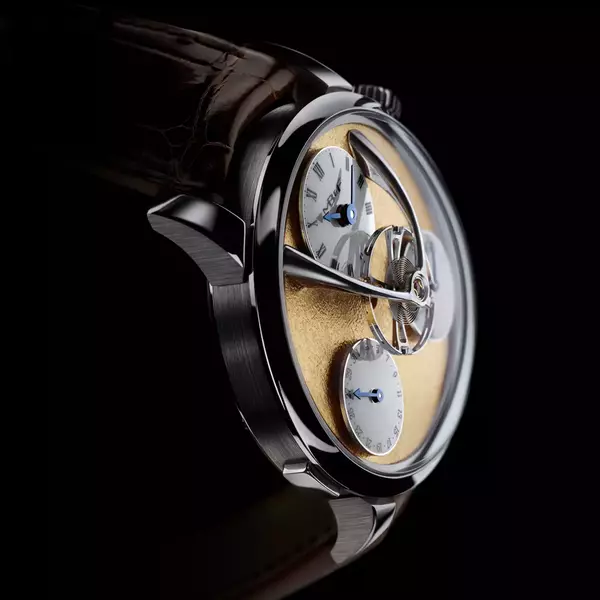

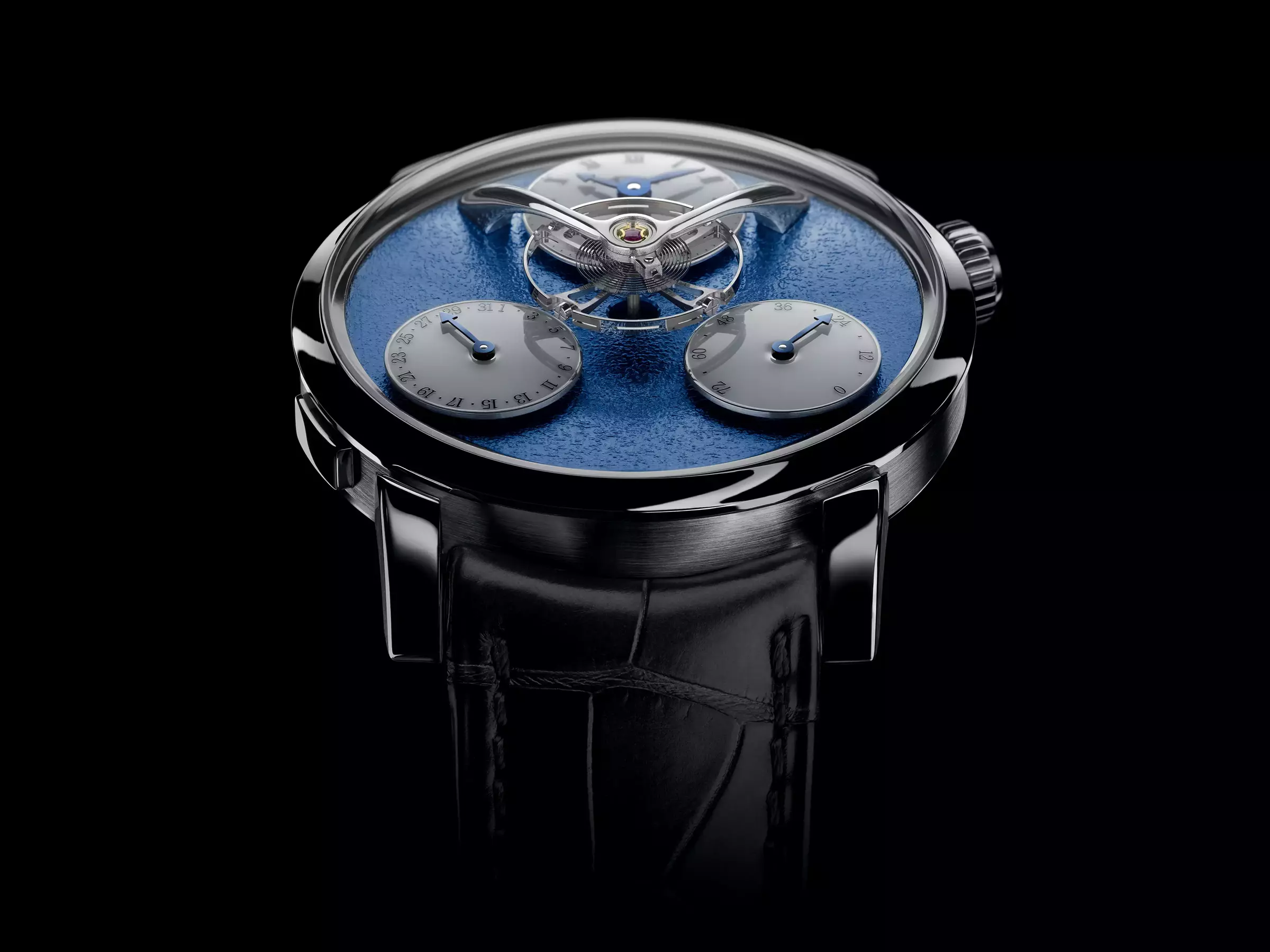

The white lacquer subdials contrast sharply with a choice of striking dial plates: a green CVD, sunray pattern for the titanium edition, or hand-frosted finishing – a rare and difficult traditional process, mastered by only a handful of artisans today – for the white gold editions.

Legacy Machine Split Escapement

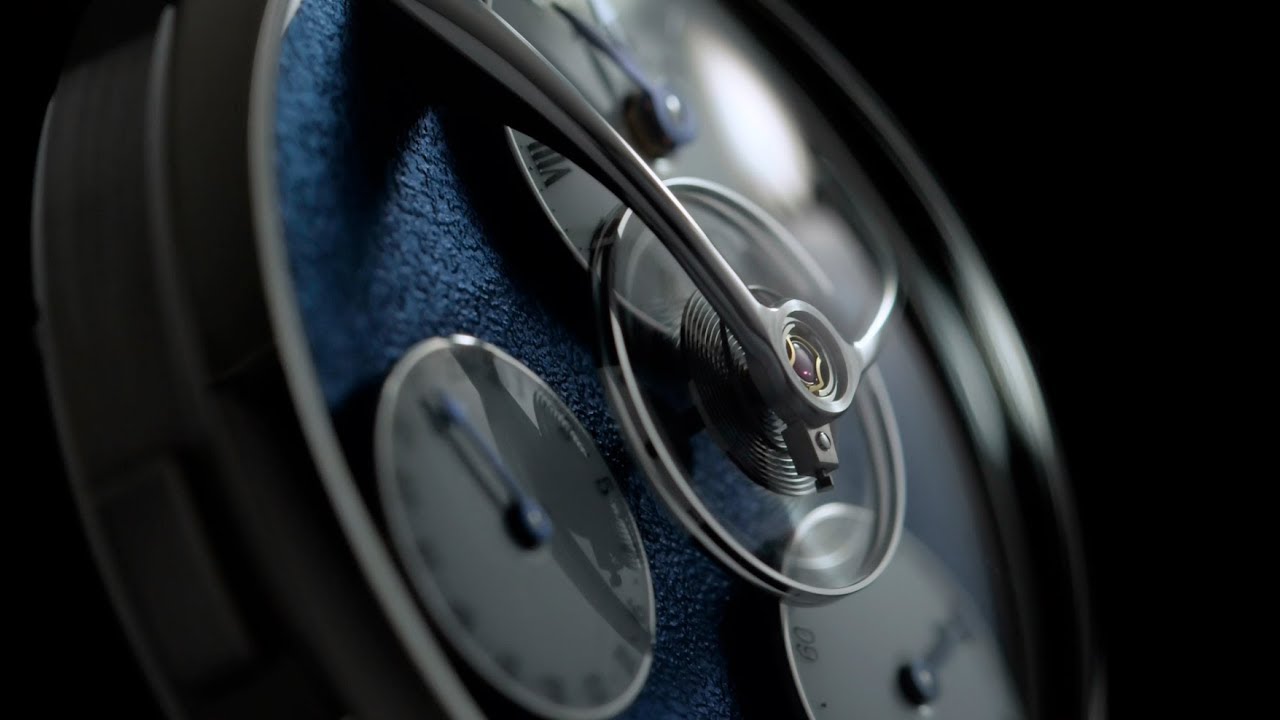

Machine in action

Concealed complexity under striking beauty.

Legacy Machine Split Escapement

Media Center

Explore

Legacy Machine Split Escapement

THE MACHINE

There is one technical constant that defines every single watch in the MB&F Legacy Machine collection.

Functions may vary, and different complications come to the fore in each edition, but the suspended balance wheel remains literally and metaphorically above everything else. In Legacy Machine Split Escapement, this feature is not only highlighted, but raised to another level of achievement.

Material: 4 launch editions in 18k white gold and 1 limited edition in titanium
Dimensions: 44 x 17.5 mm

Movement developed for MB&F by Stephen McDonnell.

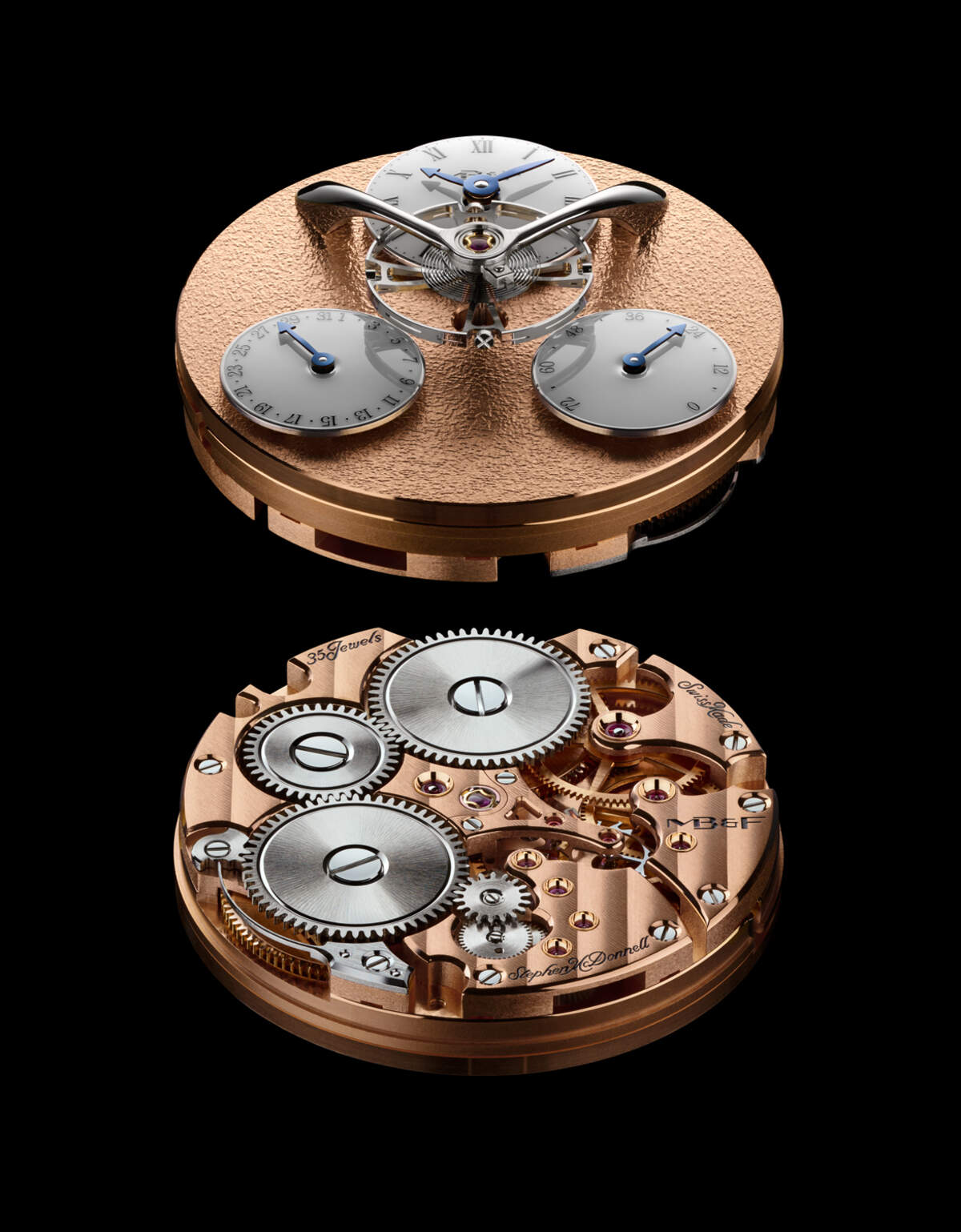

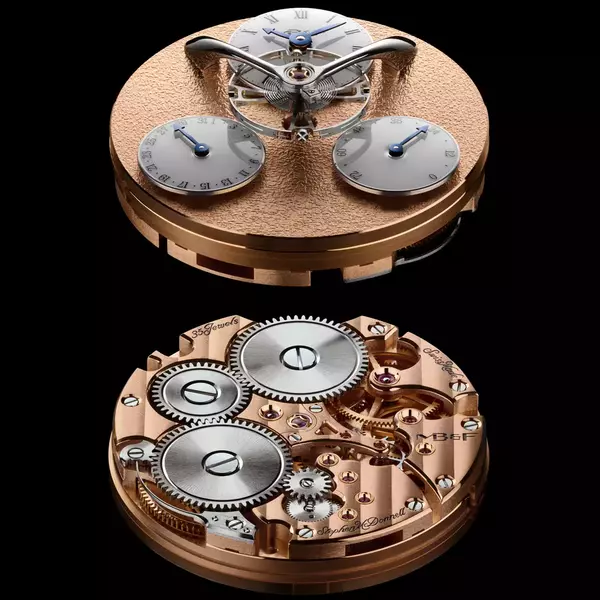

Split escapement with the balance wheel suspended above the dial and the anchor and escape wheel under the movement.
Manual winding with double mainspring barrels.
Bespoke 14mm balance wheel with traditional regulating screws visible on top of the movement.
Superlative hand finishing throughout respecting 19th-century style; bevelled internal angles highlighting hand craft; polished bevels; Geneva waves; hand-made engravings.
314 components / 35 jewels / 72h power reserve

Hours, minutes, date and power reserve indicator.
Push-button next to the date dial for quick adjustment of the date.

Legacy Machine Split Escapement

Machine Manual

Download

Legacy Machine Split Escapement

Inspiration

The first Legacy Machine drew on the atmosphere of wonder and optimism that characterised the World’s Fair expositions of the late 19th and early 20th centuries.

The suspended balance was designed to channel this heady mix of emotions achieved by its sharp departure from established watchmaking tradition. By transporting the impulse jewel, anchor and escape wheel to the opposite end of the engine, Legacy Machine Split Escapement magnifies the visual impact of its balance and bends some old rules to write some new ones.

The sensitivity of the balance and the paramount role that it plays in chronometric precision are usually reason enough for watchmakers to avoid straying too far from convention when it comes to escapements. However, Stephen McDonnell, the watchmaker behind the award-winning Legacy Machine Perpetual, was able to circumvent the hindrances to create a new mechanical regulator configuration.

LM Perpetual was the first MB&F to utilise the split escapement, although the attention then was rightfully focused on the groundbreaking new perpetual calendar. Now, with LM Split Escapement, the time for its eponymous feature has arrived.
